MWM - GAS GENERATOR
Range 400 to 4500 KW
Since 1871, MWM (Caterpillar Energy Solutions GmbH.) is the pioneer in developing efficient
& environment friendly gas generators in Mannheim, Germany.
MWM gas engines and generator sets – Performance. Reliability. Economics. For your success.

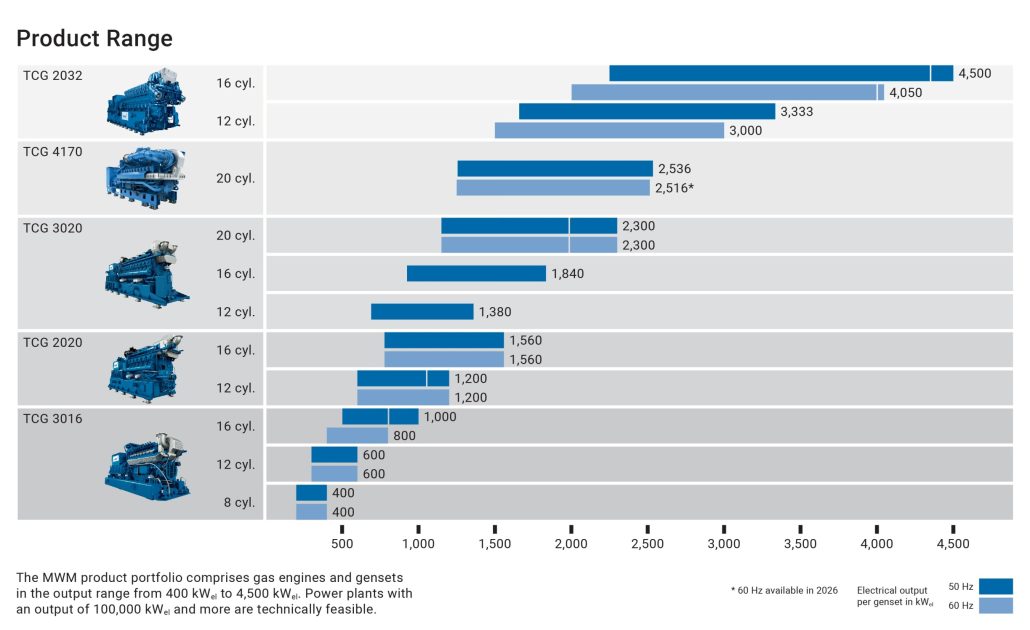

MWM’s (Caterpillar Owned) product portfolio comprised of gas gensets in the output range from 400 kW to 4,500 kW. Their design for maximum electrical and thermal efficiency, low operating and service costs and high reliability and availability makes them stand apart from their competitors.
The gas engines can be operated with different gases such as natural gas, shale gas, mine gas, biogas, landfill gas, sewage gas and synthesis gas. They are designed for maximum electrical and thermal efficiency, low operating and service costs as well as high reliability and availability. This enables them to achieve efficiencies of more than 90 percent.
Always a step ahead: key technologies for high-performance, efficient and clean engines.
The MWM portfolio is perfectly geared to the challenges of a dynamic market environment. MWM’s gas engines and generator sets with a capacity of 400 to 4,500 KW (50 Hz) meet the high requirements of a broad range of applications and guarantee efficiency, reliability, flexibility and environmental sustainability, together with low lifecycle costs and high profitability.
MWM provides gas engines and power generators for different gas types used in various applications
such as combined generation of electricity such as:
Public Utilities
Industrial or Commercial Facilities
Greenhouses
Agricultural Biogas
Landfills
Sewage Plants
Mining
In 2012 Kaltimex Energy Bangladesh was awarded MWM Dealer Award.
Features : • Low Gas Consumption • Low Lube Oil Consumption • Low Gas Pressure • Low Maintenance Cost
TCG 3016
400 – 1000 kW
Completely new development. Greatly reduced operating and installation costs. Holistic digitized power plant control.
- Power range from 400 kW el to 1,000 kW el
Best efficiency - Low gas consumption and flexible fuel, can be used for all types of gas
- The new series is characterized by greatly reduced installation and operating costs
TCG 3020
1380 – 2300 kW
The all-round talent. Intelligent and safe system control. More performance and high profitability in a compact design.
- Output: 1,380 – 2,300 kW el
- Best electrical efficiency – up to 45 percent (natural gas) and 43.6 percent (biogas)
- Very low oil consumption with high levels of efficiency
- Lower maintenance costs through longer service intervals
TCG 2032
3000 – 4500 kW
High reliability. Low operating costs. Primarily in IPP projects up to 100 MW el .
- Power range from 3,000 kW el to 4,500 kW el
- High reliability
- Low operating costs
- Also available with a fast ramp-up option
TCG 2020
1000 – 1560 kW
Best electrical and thermal efficiency in its class. For natural gas, biogas, landfill gas, sewage gas, mine gas.
- Power range from 1,000 kW el to 1,560 kW el
- Best electrical and thermal efficiency in its performance class
- Can be used for all types of gas

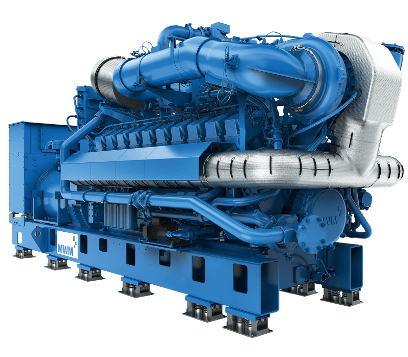

TCG 4170 V20
2500 kW
The MWM TCG 4170 V20 gas engine is optimized for high flexibility and sets new standards in electrical efficiency. The High Response configuration (TCG 4170 V20 R) delivers an outstanding efficiency of up to 46 percent in the 50 Hz version
Robust, Smart, Highly Efficient. The Smart Choice.
- Output: 2,500 kWel
- Cutting-edge electrical efficiency of up to 46 percent
- Flexible use for various applications and gas types, such as natural gas, propane gas, hydrogen blends, and other gases
- New TCS control system available in various configurations and as customized solutions
- Fast ramp-up and full power in less than five minutes
- Full power at intake air temperatures of up to 45 °C
- High robustness thanks to proven components, for maximum reliability
- Low lifecycle costs thanks to reduced maintenance times and long service intervals
- Easy maintenance and low oil consumption of ≤ 0.122 g/kWh
